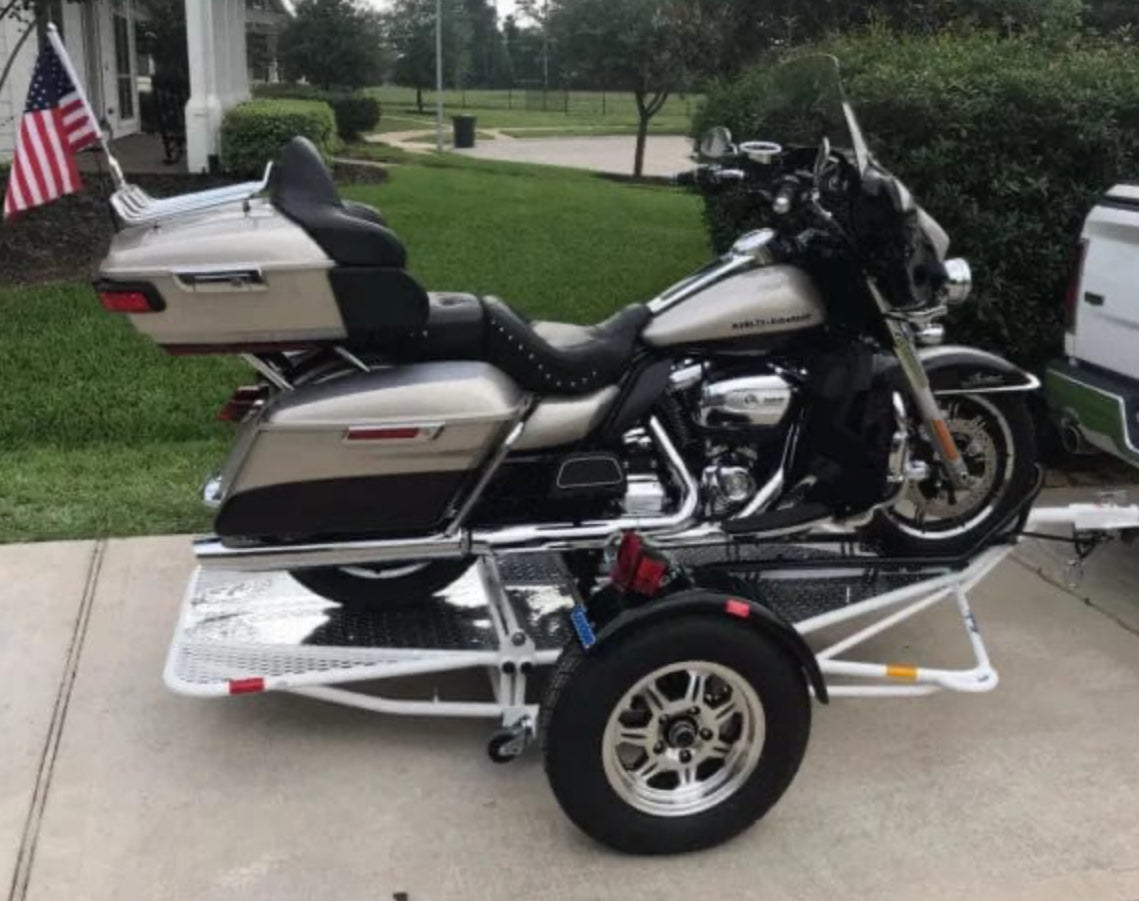

Single Stand-Up™ Motorcycle Trailer

Superior design, exceptional performance

Exceptional performance doesn’t just happen by accident, it’s a product of superior design and years of testing and refinement. Kendon’s round steel tube construction and triangulated frame geometry is inspired by race car design and engineering. The result is a trailer that is incredibly easy to use and even easier to tow.

Lightweight versatility

Our years of testing and refining our frame geometry helped us develop an amazingly lightweight, incredibly strong trailer. That means a great ride for your bike and an easy tow for your vehicle. And for you that means a trailer that’s easy to stand up and maneuver in the garage.

Specifications:

• Model: Single Rail Trailer
• Part Number: BB107
• Standard Color: Black
• Paint/Coating: Powder Coated
• Frame Material: Steel Tubing
• Deck Area: Diamond shape, 35″ x 84″
• Deck/Platform Type: Aluminum Diamond Plate (.063 Gauge)
• Deck/Platform Height: 13″
• Weight: 300 lbs.
• Load Capacity: 1,000 lbs.
• Total Overall Length: 114″
• Width: 72″
• Standing Depth: 27″
• Standing Height: 84″
• Length from Front Tire to Rear Axle: 96″ (max bike measurement)
• Width Between Fenders: 54″
• Width Between Rails: N/A (removable rail)
• Rail Width: 6.5″ (max front tire width)
• Ramp: 1 ramp, 45″ x 10½” (included)
• Wheel/Tire Size: ST175/80R13 – 13″/Radial
• Wheel/Rim Type: 8-Spoke Chrome/Steel
• Wheel Bolt Pattern: 5-on-4½”
• Hitch Class: Class 2 or Higher (recommended)
• Hitch Height: 19″ – 21″
• Coupler/Ball Size: 2″
• Coupler: Requires 2″ Ball
• Electrical Connector: 4-Pin Flat
• Suspension Type: Independent Torsion Suspension
• Suspension Mounts: Double Mounting Brackets
• End-Units/Hubs: Removable Spindle – SuperLube
• Tongue Weight: 10% – 15% of Total Load Weight (approximate)
• Transportation Capabilities: Up to one (1) Cruiser, Sport, Adventure Touring, Dual Sport and/or Dirt Bikes and/or Cargo

Summary:

The Kendon Single-Rail Folding Stand-Up™ Motorcycle Trailer is the ultimate lightweight, space-saving solution for towing one full-size bike or hauling up to 1,000 lbs of cargo. With a 300-lb weight and compact foldable design, it stores as easily as a small dresser. Built with race-inspired steel tubing and a triangulated frame, this trailer ensures superior stability and smooth towing. Features include an aluminum diamond plate deck, independent torsion suspension, and a 2″ coupler. Perfect for cruisers, sport bikes, and more. Visit The Countertop for premium towing solutions!
