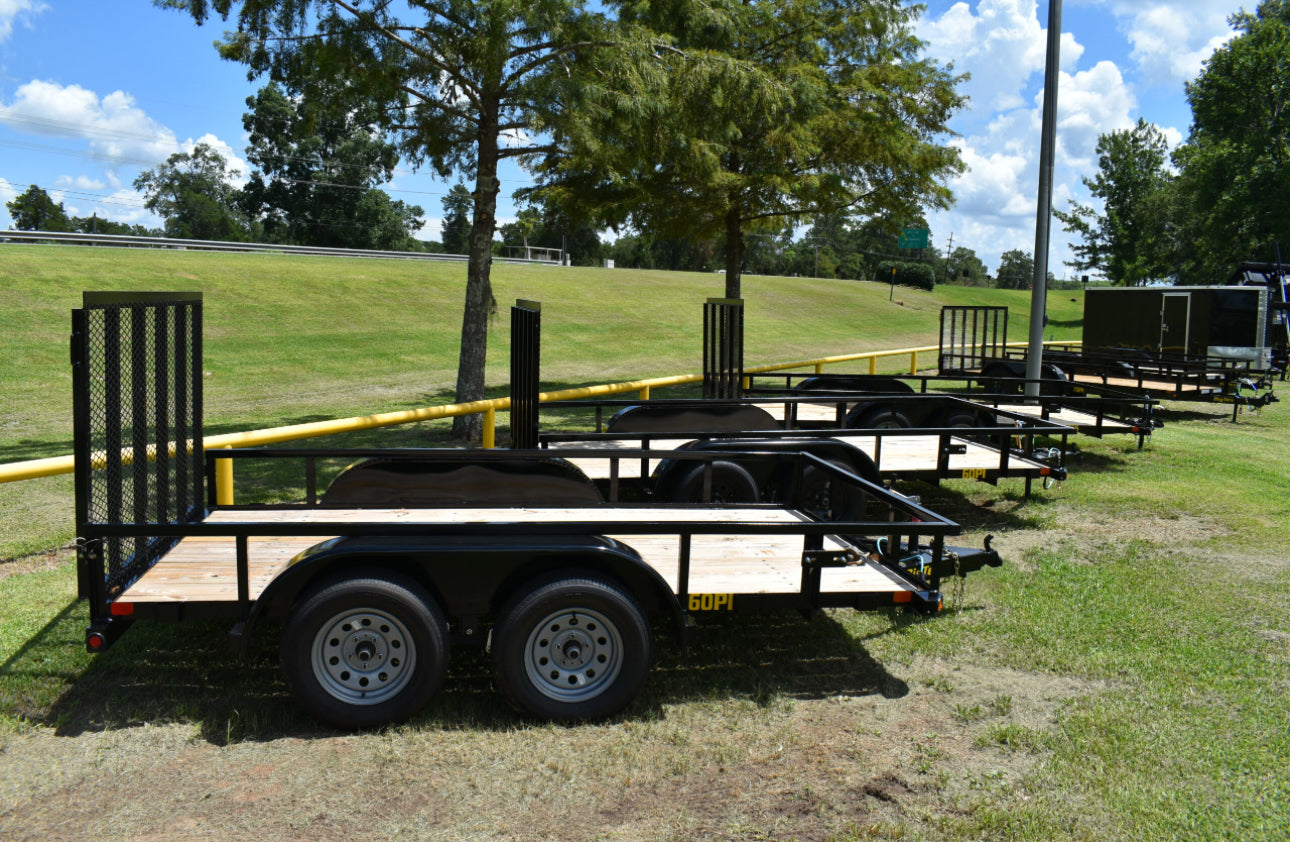

2025 MODEL 60PI-12RG Tandem Axel pipe top utility trailer

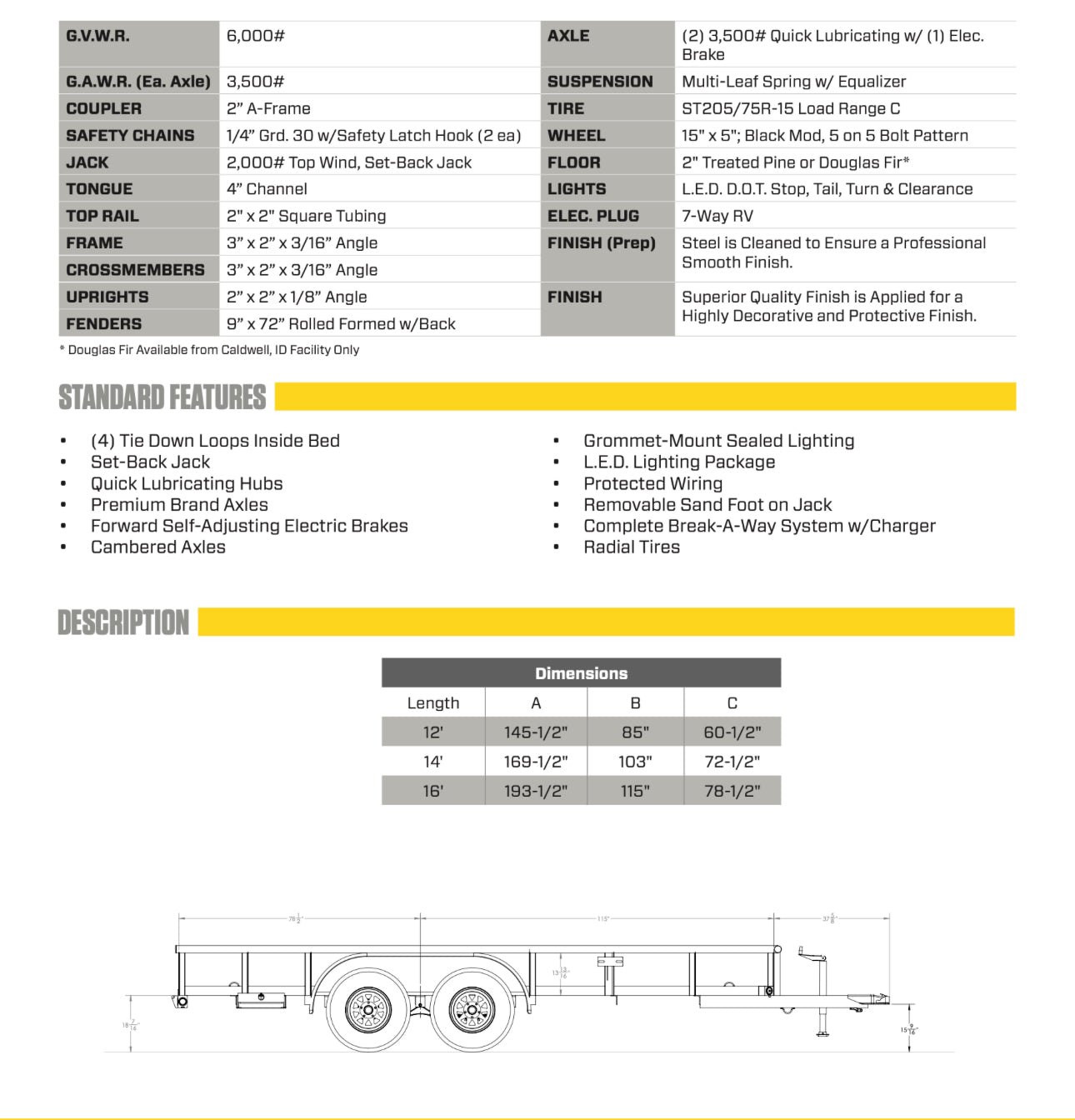

Trailer Specifications

| Component | Specification | Component | Specification
| G.V.W.R. | 6,000# | AXLE | (2) 3,500# Quick Lubricating w/ (1) Elec. Brake |
| G.A.W.R. (Ea. Axle) | 3,500# | SUSPENSION | Multi-Leaf Spring w/ Equalizer |
| COUPLER | 2" A-Frame | TIRE | ST205/75R-15 Load Range C |
| SAFETY CHAINS | 1/4" Grd. 30 w/Safety Latch Hook (2 ea) | WHEEL | 15" x 5"; Black Mod, 5 on 5 Bolt Pattern |
| JACK | 2,000# Top Wind, Set-Back Jack | FLOOR | 2" Treated Pine or Douglas Fir* |
| TONGUE | 4" Channel | LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| TOP RAIL | 2" x 2" Square Tubing | ELEC. PLUG | 7-Way RV |
| FRAME | 3" x 2" x 3/16" Angle | FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| CROSSMEMBERS | 3" x 2" x 3/16" Angle | FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| UPRIGHTS | 2" x 2" x 1/8" Angle | | |
| FENDERS | 9" x 72" Rolled Formed w/Back | | |
*Douglas Fir Available from Caldwell, ID Facility Only
Standard Features
* (4) Tie Down Loops Inside Bed
* Set-Back Jack
* Quick Lubricating Hubs
* Premium Brand Axles
* Forward Self-Adjusting Electric Brakes
* Cambered Axles
* Grommet-Mount Sealed Lighting
* L.E.D. Lighting Package
* Protected Wiring
* Removable Sand Foot on Jack
* Complete Break-A-Way System w/Charger
* Radial Tires
Dimensions
The following measurements correspond to the available trailer lengths:
| Length
| 12' | 145-1/2" | 85" | 60-1/2" |
| 14' | 169-1/2" | 103" | 72-1/2" |
| 16' | 193-1/2" | 115" | 78-1/2" |
